Styling checkboxes with CSS

This demo page is related to the article Styling form controls with CSS, revisited. For more info on the purpose of this page, please read the article.

Each checkbox control consists of this HTML:

  1. <input type="checkbox" id="checkbox-1">
  2. <label for="checkbox-1">Checkbox 1</label>

The following CSS rules are used to style the checkboxes:

  1. #el01 {width:100%} /* Width */
  2. #el02 { /* Text and background colour, blue on light gray */
  3. color:#00f;
  4. background:#ddd;
  5. }
  6. #el03 {background:url(/i/icon-info.gif) no-repeat 100% 50%} /* Background image */
  7. #el04 {border-width:6px} /* Border width */
  8. #el05 {border:2px dotted #00f} /* Border width, style and colour */
  9. #el06 {border:none} /* No border */
  10. #el07 {padding:1em} /* Increase padding */
  11. #el08 { /* Change width and height */
  12. width:4em;
  13. height:4em;
  14. }

In your current browser, with your current settings, the checkboxes look like this:

And here are screenshots from several browsers on different operating systems:

  1. Camino 1, Mac OS X 10.4.8
  2. Firefox 2.0.0.1, Mac OS X 10.4.8
  3. Firefox 2.0.0.1, Ubuntu 6.10
  4. Firefox 2.0.0.1, Windows XP
  5. iCab 3.0.3, Mac OS X 10.4.8
  6. Internet Explorer 6, Windows XP
  7. Internet Explorer 7, Windows XP
  8. Konqueror 3.5.5, Kubuntu
  9. OmniWeb 5.5.1, Mac OS X 10.4.8
  10. Opera 9.10, Mac OS X 10.4.8
  11. Opera 9.10, Ubuntu 6.10
  12. Opera 9.10, Windows XP
  13. Safari 2.0.4, Mac OS X 10.4.8
  14. WebKit 420+, Mac OS X 10.4.8

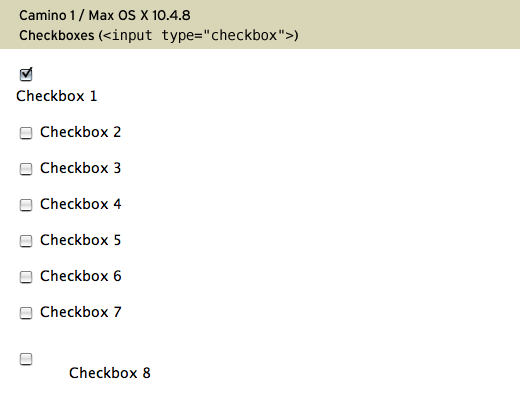

Camino 1, Mac OS X 10.4.8

Back to screenshot list

Firefox 2, Mac OS X 10.4.8

Back to screenshot list

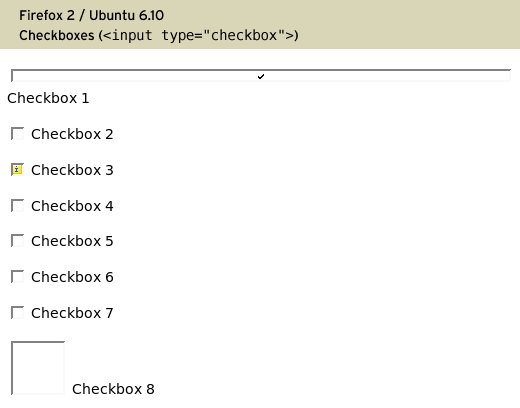

Firefox 2, Ubuntu 6.10

Back to screenshot list

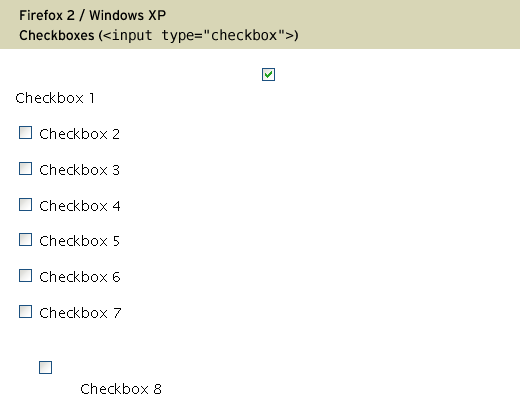

Firefox 2, Windows XP

Back to screenshot list

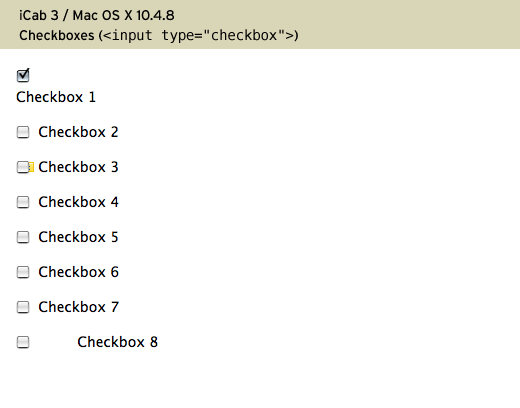

iCab 3, Mac OS X 10.4.8

Back to screenshot list

Internet Explorer 6, Windows XP

Back to screenshot list

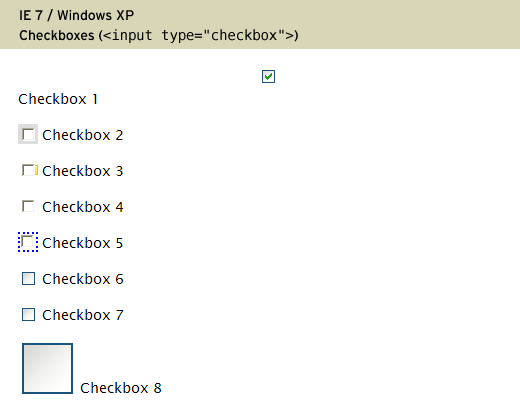

Internet Explorer 7, Windows XP

Back to screenshot list

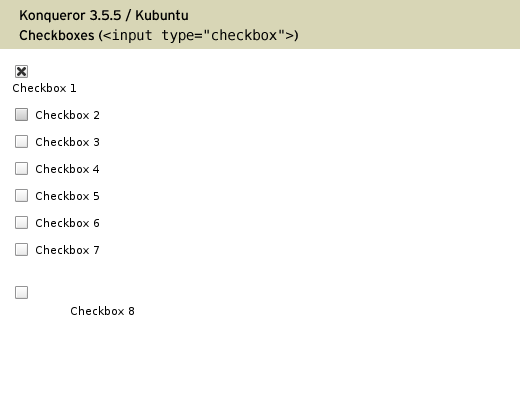

Konqueror 3.5.5, Kubuntu

Back to screenshot list

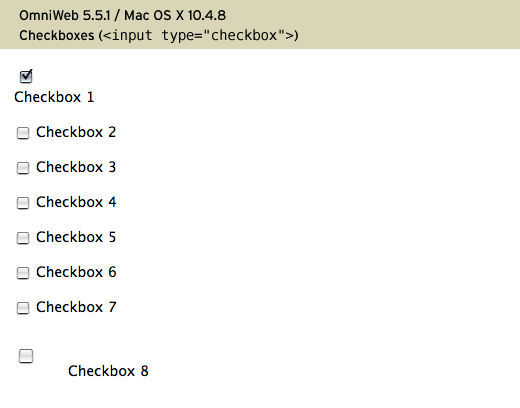

OmniWeb 5.5.1, Mac OS X 10.4.8

Back to screenshot list

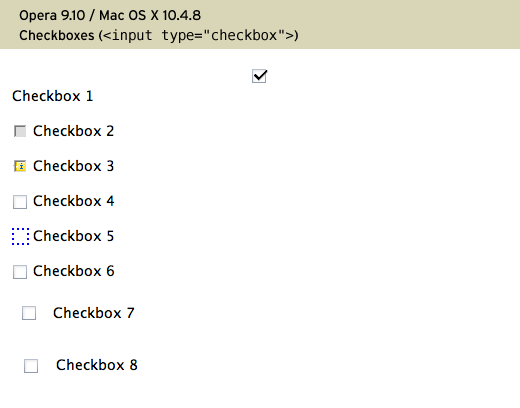

Opera 9.10, Mac OS X 10.4.8

Back to screenshot list

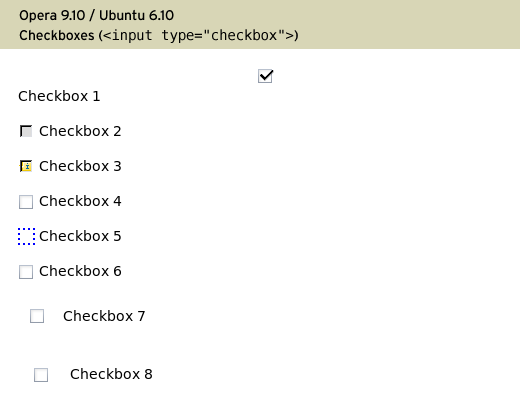

Opera 9.10, Ubuntu 6.10

Back to screenshot list

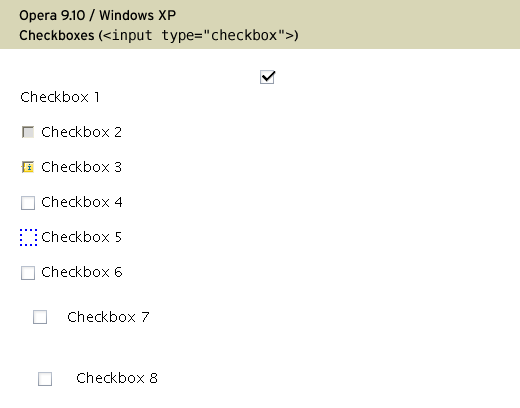

Opera 9.10, Windows XP

Back to screenshot list

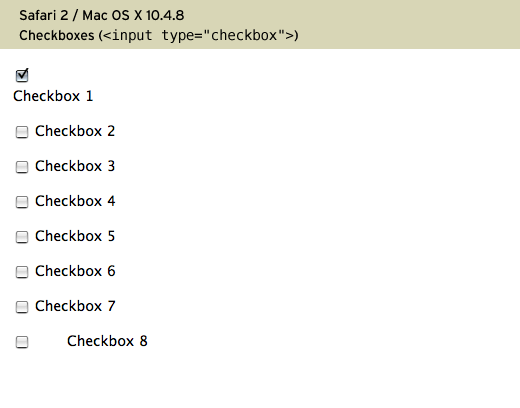

Safari 2, Mac OS X 10.4.8

Back to screenshot list

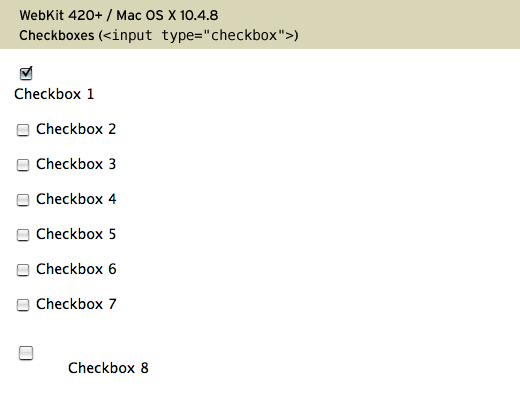

WebKit 420+, Mac OS X 10.4.8

Back to screenshot list
